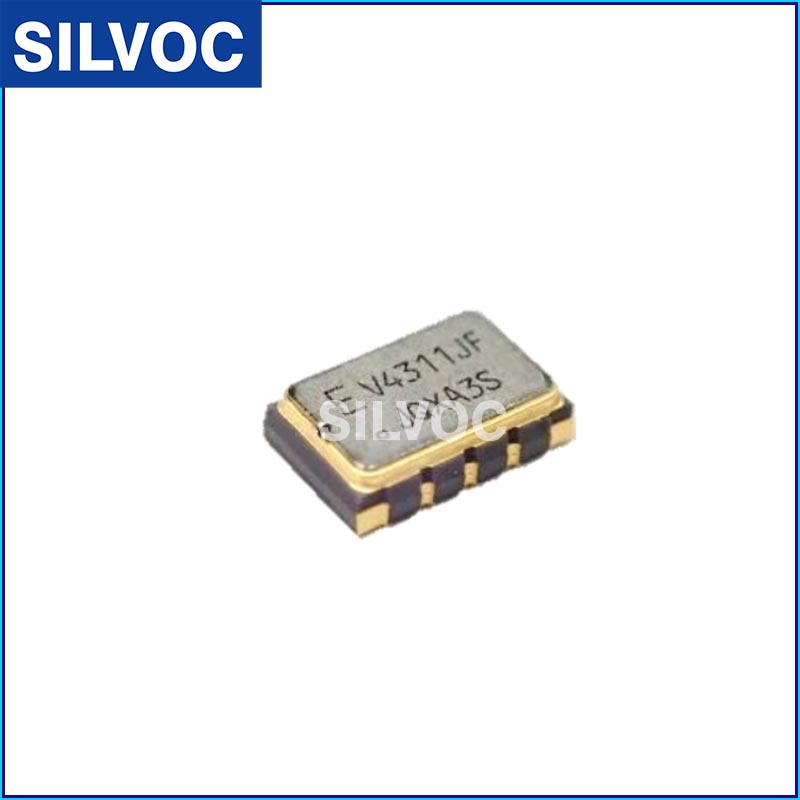

XV4311BD: EPSON Gyro sensor (Digital Output)
Conforms to AEC-Q100, Support evaluation of hardware elements in ISO26262
Bias In stability: 0.9°/h Angle Random Walk: 0.065°/√h
SafeSPI serial interface
Angular rate output (16 bit / 24 bit)
Excellent bias stability over temperature
Operating temperature range : -40 °C to +105 °C
XV4311BD: EPSON Gyro sensor (Digital Output)
P/N | Q-Code | Size | MOQ |
XV4311BD | X2A000371xxxxxx | 5.0 x 3.2 | 2000PCS/Reel |
XV4311BD 51.000kHz J | X2A000371xxxxxx | 5.0 x 3.2 | 2000PCS/Reel |
The XV4311BD has superior performance characteristics especially with bias output stability and low noise. Epson achieves these performances by using Epson’s original quartz sensor element.
This sensor has digital output interface (SafeSPI).
In addition, user-selectable low pass filters are available for wide range of cut-off frequencies. The XV4311BD is suitable for various applications from consumer electronics such as automotive devices to industrial equipment.
Conforms to AEC-Q100, Support evaluation of hardware elements in ISO26262
Bias In stability: 0.9°/h Angle Random Walk: 0.065°/√h
SafeSPI serial interface
Angular rate output (16 bit / 24 bit)
Excellent bias stability over temperature
Operating temperature range : -40 °C to +105 °C
Built-in temperature sensor
Equipped with fault diagnosis functionality for enhanced system safety
Recommended Application
- Anti-vibration and attitude control for industrial applications etc.
- Localization system for ADAS/autonomous vehicle applications (Yaw axis enhancement)
· Anti vibration and attitude control for industrial applications etc.
· Localization system for ADAS / autonomous vehicle applications (Yaw axis improvement)
·
Item | Symbol | Specifications | Conditions / Remarks |
Supply Voltage | VDDM | 2.7 to 3.6 V | |
Supply Voltage for interface | VDDI | 1.65 V to 3.60 V | |
Storage temperature | TSTG | -40°C to +105°C | |
Operating temperature | TOPR | -40°C to +105°C | |
Scale Factor | So | 264 LSB/(°/s), 66 LSB/(°/s) ±2.0 % | 16bits, Ta=+25°C |
67584 LSB/(°/s), 16896 LSB/(°/s) ±2.0 % | 24bits, Ta=+25°C | ||
Bias | ZRL | ±1 °/s (0 LSB Typ.) | Ta=+25°C |
Bias over temperature | ZRLt | ±0.25 °/s | Ta=+25°C reference |
Rate range | I | ±115 °/s, ±460 °/s | FS=1, FS=1/4 |
Non-linearity | NI | ±0.05 %FS | Ta=+25°C |
Cross-axis sensitivity | CS | ±5 % | Ta=+25°C |
Current consumption | Iop1 | 2.5 mA Max. | Not communicating |
Sleep current | Iop3 | 3 μA Typ. | |
Noise density | Nd | 0.0015 (°/s)/√Hz Typ. | at 10Hz |
Angle random walk | N | 0.065 °/√h yp. | |
Bias instability | Bs | 0.9 °/h Typ. | Bottom value of Allan deviation |
Figure 1 Functional block diagram
Angular rate output
The 16-bit / 24-bit angular velocity output data is provided in the 2’s complement expression. To use 24-bit output mode, it is necessary to switch to 24-bit mode with 1C address and then read twice with SafeSPI.
Detecting Axis and Output Polarity
This product detects an angular rate of a rotational movement. The correlation between a detecting axis of the angular rate and an output polarity is shown in Figure 2.
Figure 2 Detection Axis and Detection Polarity
Interface
This sensor is specified to the SafeSPI – Serial Peripheral Interface for Automotive Safety.
Temperature Sensor Output
The 16-bit temperature output data is provided in the 2’s complement expression. Output data rate is 1 kHz.
P/N | Q-Code | Size | MOQ |
XV4311BD | X2A000371xxxxxx | 5.0 x 3.2 | 2000PCS/REEL |
XV4311BD 51.000kHz J | X2A000371xxxxxx | 5.0 x 3.2 | 2000PCS/REEL |
Product Name
XV4311BD 51.000KHz J
（Standard form） ① ②③④ ⑤ ⑥ ⑦
① Model ② Detection axis(1:Z-axis) ③ Package type (B : Ceramic 5.0 x 3.2 mm )
④ Output (D: SafeSPI) ⑤ Frequency ⑥,⑦Custom recognition (⑤⑥⑦ are necessary to specify)
Product Number
XV4311BD 51.000KHz J X2A000311003200
① ② ③ ④ ⑤
① Crystal devices ② Model
③ Pb free code(1 or 2: EU RoHS compliant / Pb free)
④ Detail specifications ⑤ Packing code (00: Standard : 2000pcs/Reel)
＊Blank section is decided by each detail specification.
